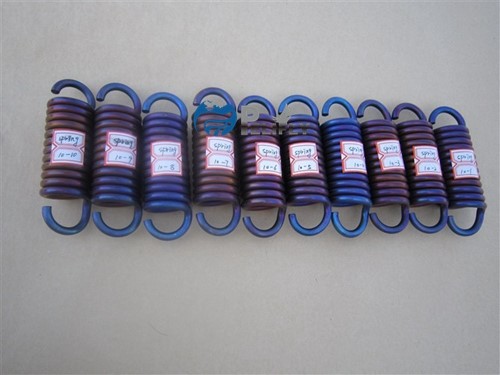

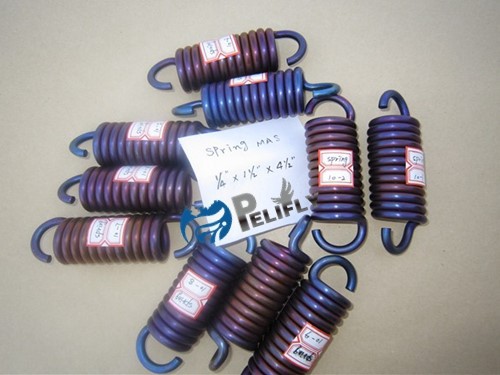

Nitinol One Way Memory Alloy Springs

Nitinol one-way memory alloy springs are a type of spring made from Nitinol,  with unique shape memory and superelastic properties.

One-way memory nitinol springs are designed to change their shape in response to changes in temperature. When the spring is heated to a specific temperature called the transition temperature, it undergoes a phase transformation and returns to its original pre-deformed shape.

The "one-way" aspect of the spring refers to the fact that it can only return to its original shape in one direction, usually the direction in which it was initially deformed. Once the spring has undergone the shape memory effect and returned to its original shape, it cannot be deformed and then returned to its original shape again without being heated and undergoing phase transformation again.

One-way memory nitinol springs are used in a variety of applications, including medical devices, automotive and aerospace engineering, and consumer products. They are particularly useful in situations where a compact, reliable, and energy-efficient spring is needed, and where a high level of precision and repeatability is required.







Characteristics:

1. Shape memory: they will automatically return to shape after certain heat treatment, this change is the shape memory characteristic of Nitinol shape memory alloy.

2. Super elasticity: They will be deformed when receiving external force, but will return to their original shape after removing the external force, which is characteristic of Nitinol shape memory alloy.

3. Damping: Because of the self-adjustment of the phase change and the interface and movement generated in the phase change, have very good damping.

4. Resistivity: Martensitic NiTi alloy has a linear relationship between its resistance and strain during the deformation process in China. When phase transformation occurs, the slope of the curve decreases, however, the linear relationship is maintained even after the martensitic phase transformation.

Applications ：

①Orthodontic wires: They are often used as orthodontic wires because they can apply a constant and gentle force to move teeth into the desired position.

②Self-deployable structures: They can be used to create self-deployable structures, such as in satellite antennas or medical devices.

③Thermal actuators: They can be used as thermal actuators, which are devices that convert thermal energy into mechanical work.

④Fire sprinkler systems: They can be used in fire sprinkler systems to create a trigger mechanism that activates the sprinkler head when exposed to a certain temperature.

⑤Automotive applications: They can be used in automotive applications, such as in airbag deployment systems, seatbelt buckles, and engine components.

⑥Robotics: One-way springs can be used in robotics to create actuators that can operate in extreme environments, such as high temperatures or radiation.

⑦Aerospace applications: They can be used in aerospace applications, such as in aircraft wings or engine components, because of their ability to withstand high temperatures and provide shape memory properties.

Our company produces Nitinol one-way memory alloy springs in large quantities and has 15 years of production experience, and our products have received high praise from customers at home and abroad. If you are interested in memory alloy springs, you can contact us, and we look forward to cooperating with you.
