Titanium Gr.5 Ti6Al4V Strips And Coils
1.Name: Titanium Gr.5 Ti6Al4V strips and coils
2. Grade: Gr.5 and Gr.5 Eli
3. Standard: ASTM B265 ASTM F136 Eli
4.Size:(0.10-0.30mmTHK)×width≦500mm×L(coil or flat)
(0.4-0.90mmTHK)×width≦1270mm×L(coil or flat)
(1.0-2.0mm THK)×width≦1570mm×L(coil or flat)
5. MOQ: 20kg
6. Surface: Cold rolled, bright polished
7. Package: Export case
8. Test report: Third-party test report and EN10204 can be provided
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Titanium Gr.5 Ti6Al4V strips and coils a popular titanium alloy thin coiled sheets. It is composed of approximately 90% titanium (Ti), 6% aluminum (Al), and 4% vanadium (V). Strips and coils are often used as raw materials in various manufacturing processes. They can be further processed through cutting, bending, machining, and welding to create specific components or products tailored to the requirements of different industries.
Titanium Gr.5 Ti6Al4V strips and coils are known for their excellent combination of high strength, low weight, and corrosion resistance, making them a preferred choice for various applications in industries such as aerospace, medical, automotive, and marine.
Chemical composition:

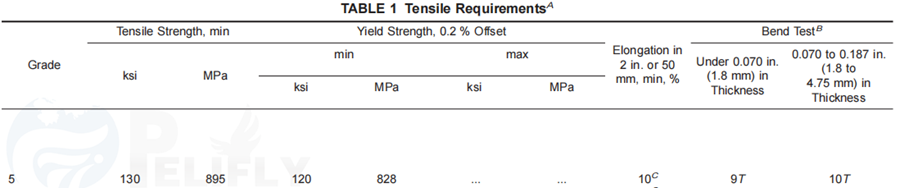

Tensile requirements:
Here are some typical size ranges for Titanium Grade 5 strips and coils:
Strip Thickness: The thickness of titanium strips can range from very thin to thicker strips, depending on the intended use. Common thicknesses might include 0.1 mm (100 micrometers) up to several millimeters.
Strip Width: The width of titanium strips can vary widely, starting from a few millimeters (e.g., 1 mm) and going up to several inches (e.g., 12 inches or more).
Coil Dimensions: Titanium coils can have different dimensions depending on the customer's requirements. The coil's width can be determined by the strip width and the length by the amount of material wound onto the coil. Coil diameters can also vary but are typically larger to accommodate the wound material.
Products parameters
| products Name |
Titanium Gr.5 Ti6Al4V strips and coils |
|||
| Materials | Titanium alloy Gr.5 Ti-6AL-4V and Gr.5 Ti6al4v Eli | |||
| Standard | ASTM B265 ASTM F136 F67 | |||
| Size | 0.1mm Thk Min | |||
| MOQ | 20kgs | |||
| Delivery time | 5-30days | |||
| MTC |
Third-party test report and EN10204 |
|||

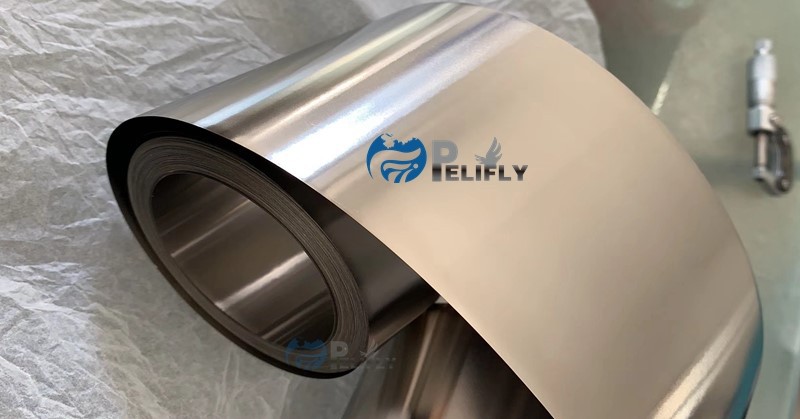

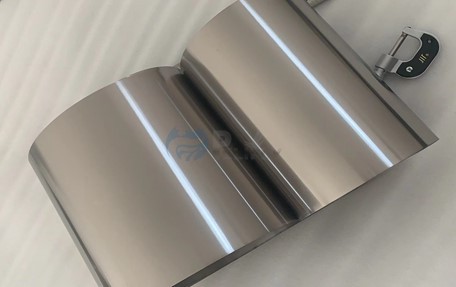

Product Picture
Product advantages and features
Our advantages
Weight Reduction:
The high strength-to-weight ratio of Titanium Grade 5 allows for weight reduction in structural components and applications, which can lead to improved fuel efficiency in aerospace, automotive, and other industries.
Longevity:
Its exceptional corrosion resistance ensures a longer lifespan for components and structures, reducing maintenance and replacement costs.
Biomedical Applications:
Titanium Grade 5's biocompatibility and corrosion resistance make it ideal for medical and dental implants, where it can provide long-lasting, reliable performance within the human body.
Chemical Processing:
It is used in chemical processing industries due to its resistance to corrosive chemicals and high temperatures.
Features:
1
High Strength-to-Weight Ratio:
Titanium Grade 5 has a high strength-to-weight ratio, making it exceptionally strong while being relatively lightweight. This property is essential in applications where both strength and weight are critical factors.
2
Excellent Corrosion Resistance:
Titanium Grade 5 exhibits outstanding corrosion resistance, particularly in environments involving seawater, chemicals, and acidic solutions. This corrosion resistance is due to the formation of a protective oxide layer on its surface.
3
Biocompatibility:
This titanium alloy is biocompatible, meaning it is well-tolerated by the human body. It is often used in medical implants, such as orthopedic implants and dental fixtures.
4
Good Weldability:
It can be welded using various methods, allowing for the fabrication of complex structures and components.
Our factory
workshop
workshop
workshop
workshop
Products package
The packaging of Titanium Grade 5 (Ti6Al4V) strips and coils can vary depending on the specific requirements of the customer. However, there are some common packaging methods we use to protect and transport titanium strips and coils:
Coils: When titanium strips are wound into coils, they are typically packaged in the following ways:
Coil Form: The titanium strips are wound into a coil shape, and the coil may be secured with straps or bands to keep it in place.
Coil Protection: The coil may be further protected by wrapping it in paper and putting the White pearl cotton pad around inside the wooden boxes to prevent damage and corrosion during transport and storage. and
Palletization: Coils are often placed on pallets and secured with strapping or shrink wrap for ease of handling and transportation.
