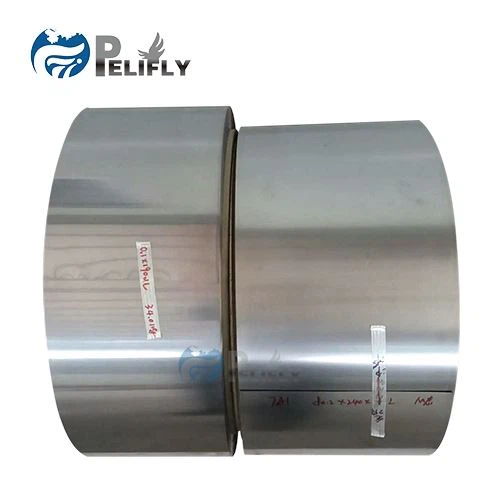

Titanium Alloy Strips and Titanium Ribbons
Grade： GR5/GR7/GR11/GR12/GR23 Eli
Thickness≧0.1mm
With：≤3300mm
Length： Customization
Single coil weight：0~100kg
Chinese national standard： GB/T 3622-2012
ASTM standard：ASTM B265; ASTM F136 Eli ,
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
-
Titanium Alloy Strips And Titanium Ribbons are made of titanium alloy materials, which have the advantages of small density, higher strength, good corrosion resistance, high-temperature advantages excellent performance, and are widely used in aerospace, petrochemical, electronics, and many other industrial fields. In recent years, the application of Titanium Alloy Strips Titanium Ribbons, and foil has also been increasing, such as in aerospace and other important uses of precision instruments, the chemical industry for high corrosion resistance requirements of the filler, lining materials, and electronic industry components with materials. Its technical content is high. It is a high-value-added material, which is difficult to manufacture.
-
Products specification:
|
Grade |
Name |
Process |
status |
Size(Thickness×Width×Length)mm |
Finished |
|
GR5 Eli GR7 GR9 GR11 GR12 GR23 Eli |
Titanium foil |
Cold rolled |
(Y) |
(0.01∽<0.03)×(30∽500)×coil (0.03∽<0.10)×(50∽300)×coil (0.10-0.30)×(≤1000)×Coil |
Flat or coiled |
| (M) | |||||
|
Titanium strip |
Cold rolled |
(Y) |
(0.10∽<0.30)×(150∽600)×L coil (0.30∽3.00)×(W:1000-1280mm)×Coil |
||
| (M) | |||||
|
Hot rolled |
(Y) | (3.00∽12.70)×(W:1000-2000mm)×C | |||
| (M) |
Note: we can slit to strips as customers' required width.

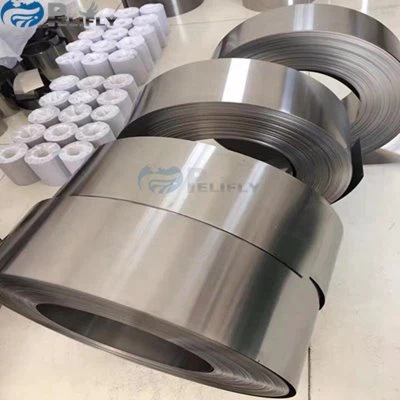

The room temperature properties of annealed Titanium Alloy Strips And Titanium Ribbons with a thickness of not less than 0.10mm are shown in the table below. If required by the purchaser and specified in the contract, acceptance will be in accordance with Class II.5. Products show:
|
Grade |
State |
Thickness (mm) |
Room temperature Property |
bending properties | ||||
|
Tensile strength (Rm/Mpa)
|
Specify non-proportional extensionRp0.2/Mpa |
elongationA50min/% | bending angle | Bending diameter | ||||
| Ⅰ | Ⅱ | |||||||
|
GR.1 GR.17 GR.11 |
M |
0.10-<0.50 |
≧240 |
140-310 |
≧24 |
≧40 |
105° |
3T |
|
0.50-<0.50 |
≧35 | 3T | ||||||
|
2.00-4.75 |
/ | 4T | ||||||
|
GR.2 |
0.10-<0.50 |
≧345 |
275-450 |
≧20 |
≧30 |
4T | ||
|
GR.16 |
0.50-<0.50 |
≧25 | 4T | |||||
|
GR.7 |
2.00-4.75 |
/ | 5T | |||||
|
GR.3 |
|
0.10-<2.00 |
≧450 |
380-550 |
≧18 |
/ |
4T | |
|
|
2.00-4.75 | 5T | ||||||
|
GR.4 |
|
0.30-<2.00 |
≧550 |
485-655 |
≧15 |
/ |
5T | |
|
|
2.00-4.75 | 6T | ||||||
|
GR.12 |
A |
0.10-<2.00 |
≧485 |
≧345 |
≧18 |
/ |
4T | |
| 2.00-4.75 | 5T | |||||||
|
B |
0.10-<2.00 |
≧345 |
≧275 |
≧25 |
/ |
4T | ||
|
2.00-4.75 |
5T | |||||||
6. Titanium and titanium alloy made to be Titanium Alloy Strips And Titanium Ribbons has six main characteristics.
-
1. High strength: Titanium has a better strength/density ratio than other metals and can be used to make components with high strength, good rigidity, and low weight.
-
2. Anti-corrosion: Compared to stainless steel, titanium alloys are more effective in humid air and seawater, titanium has great resistance to pitting, acid, and stress corrosion.
-
3. High-temperature resistance: The application temperature of titanium is higher than that of aluminum alloy. Titanium can work for a long time at 450-500°C. Titanium alloy still has high strength at working temperatures of 150-500°C. Titanium can work at temperatures up to 500°C.
-
4. Environmentally-friendly metal: When working in low or ultra-low temperature conditions, titanium alloys still have their mechanical properties. With low-temperature resistance and very low gap titanium alloy still have good ductility, therefore, titanium alloy is a good low-temperature structural material.
-
5. Good thermal conductivity: The thermal conductivity of titanium is lower than that of carbon steel or copper, but titanium has very good corrosion resistance, so the thickness of titanium can be greatly reduced and the heat exchange pattern is drop-by-drop condensation between titanium and steam. This pattern reduces the resistance to heat transfer and there is no fouling on the titanium surface, resulting in better thermal conductivity of titanium.

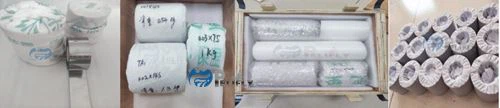

7. Packaged method:
Packaging and shipping Details:
1. Inner packing: plastic foam bag;
2. Outer packing: plywood case with strips;
8. Our advantages: Our company's titanium and alloy strips, ribbons, and foil products have been well received by all sectors of the industry for many years with our high-tech research and development level, advanced production equipment, and standardized quality assurance system;
Foil products include titanium foil, and strip, zirconium foil, tantalum foil, nickel foil, copper foil, molybdenum foil, etc.; the thickness is 0.01mm - 1.0mm.
The factory has 8 sets of advanced processing equipment, including a six-roller tying machine, a high vacuum annealing furnace, a cleaning machine, a mirror tying roll grinding machine, a spot welding machine, a slitting machine, and other equipment and machinery.
Our factory can produce all kinds of Titanium Alloy Strips Titanium Ribbons and foil products according to national standards (American standards) and customer requirements. Our products are widely used in the fields of electronics, decoration, the chemical industry, metallurgy, etc.
The sales volume of our products is increasing year by year, and our products are sold in various countries at home and abroad, including Sweden, Italy, Germany, New Zealand, Finland, Japan, Malaysia, Singapore, and other countries, and are well received by customers at home and abroad.
"Honesty and trustworthiness, customer first, quality-oriented" is our consistent business purpose, to provide customers from all walks of life with quality foil products at low prices, and your satisfaction is our eternal goal. Our factory has cooperated with many famous enterprises at home and abroad. We sincerely welcome friends from all over the world to negotiate business and visit us for guidance.
