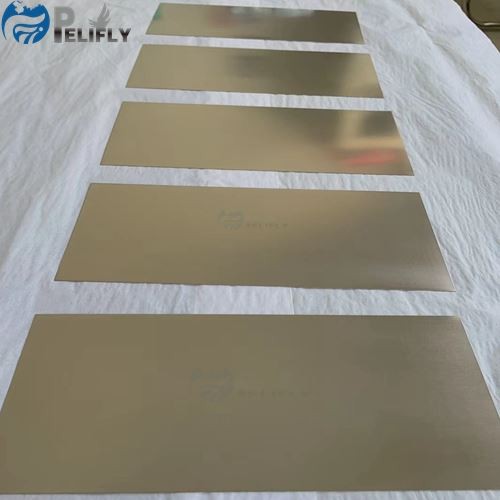

ASTM B265 Pure Titanium Thin Sheets

ASTM B265 Pure Titanium thin sheets are primarily flat plates with very thin thicknesses, often as thin as 0.1mm, which is a common specification requested by customers. Our company can produce both pure titanium and titanium alloy thin sheets. In this introduction, we will focus on pure titanium thin sheets, including titanium grades Gr.1-Gr.4. Pure titanium is known for its exceptionally high purity, typically containing 99.95% titanium content. It conforms to industrial standards such as ASTM B265 and medical-grade standards like ASTM F67. These thin sheets are highly regarded for their corrosion resistance and strength-to-weight ratio, making them suitable for applications in aerospace, medical devices, and more. ASTM B265 specifies standards for chemical composition, mechanical properties, and dimensional tolerances, and may include surface treatments and heat treatments. Manufacturers and users of these thin sheets rely on this standard to ensure quality and compliance with industry requirements, supporting technological advancements across various sectors.

Pure titanium thin sheet plate

Thickness: 0.3mm

Width: 100mm

Length： 300mm

Tolerance:

Thickness: 0.03-0.20mm

Width: 0.13-0.20mm

Length: +1.6-0mm

1. High Purity: ASTM B265 Pure Titanium thin sheets typically consist of commercially pure titanium, such as Grade 1 or Grade 2 titanium, with very high purity levels, often around 99.95% titanium content.

2. Corrosion Resistance: Pure titanium thin sheets offer exceptional resistance to corrosion, especially in aggressive environments like seawater and chemical processing.

3. Lightweight: Titanium is known for its excellent strength-to-weight ratio, making these thin sheets lightweight while maintaining considerable strength.

4. Ease of Fabrication: Pure titanium thin sheets can be easily machined, formed, and welded, allowing for the creation of complex shapes and structures.

5. Longevity: These sheets are known for their durability and long service life, thanks to their resistance to corrosion and degradation over time.

6. Non-magnetic: Titanium is non-magnetic, which is advantageous in applications where magnetic interference must be minimized.

7. Biocompatibility: Pure titanium is biocompatible, making it suitable for medical applications such as surgical implants and dental prosthetics.

8. Excellent Heat Resistance: Titanium can withstand high temperatures, making it ideal for use in applications where heat resistance is essential, such as aerospace components and exhaust systems.

9. Low Thermal Expansion: Titanium has a low coefficient of thermal expansion, ensuring dimensional stability even in temperature-varying conditions.

10. Compliance with Industry Standards: ASTM B265 sets strict standards for the chemical composition, mechanical properties, dimensional tolerances, surface finish, and heat treatment of pure titanium thin sheets, ensuring their quality and suitability for various industrial applications.

11. Versatility: ASTM B265 encompasses a range of titanium grades, allowing users to select the most suitable grade for their specific application requirements, whether it's for aerospace, medical, or other industries.

These features collectively make ASTM B265 Pure Titanium thin sheets highly desirable in industries where reliability, corrosion resistance, and strength-to-weight ratio are critical factors. They are used in a wide range of applications, including aerospace components, medical implants, chemical processing equipment, and more, where the material's unique properties provide significant advantages.
